Chapter 6: The IO-stream Library

Extending the standard stream (FILE) approach, well known from the C programming language, C++ offers an input/output (I/O) library based on class concepts.

All C++ I/O facilities are defined in the namespace std. The std:: prefix is omitted below, except for situations where this would result in ambiguities.

Earlier (in chapter [3]({{< relref "/docs/A First Impression" >}})) we've seen several examples of the use of the C++ I/O library, in particular showing insertion operator (<<) and the extraction operator (>>). In this chapter we'll cover I/O in more detail.

The discussion of input and output facilities provided by the C++ programming language heavily uses the class concept and the notion of member functions. Although class construction has not yet been covered (for that see chapter 7) and although inheritance is not covered formally before chapter 13, it is quite possible to discuss I/O facilities long before the technical background of class construction has been covered.

Most C++ I/O classes have names starting with basic_ (like basic_ios). However, these basic_ names are not regularly found in C++ programs, as most classes are also defined through using declarations like:

using ios = basic_ios<char>;

Since C++ supports various kinds of character types (e.g., char, wchar_t), I/O facilities were developed using the template mechanism allowing for easy conversions to character types other than the traditional char type. As elaborated in chapter 21, this also allows the construction of generic software, that could thereupon be used for any particular type representing characters. So, analogously to the above using declaration there exists a

using wios = basic_ios<wchar_t>;

This way, wios can be used for the wchar_t type. Because of the existence of these type definitions, the basic_ prefix was omitted from the C++ Annotations without loss of continuity. The C++ Annotations primarily focus on the standard 8-bits char type.

Iostream objects cannot be declared using standard forward declarations, like:

    class std::ostream;     // now erroneous

Instead, to declare iostream classes the <iosfwd> header file should be included:

#include <iosfwd>       // correct way to declare iostream classes

Using C++ I/O offers the additional advantage of type safety. Objects (or plain values) are inserted into streams. Compare this to the situation commonly encountered in C where the fprintf function is used to indicate by a format string what kind of value to expect where. Compared to this latter situation C++'s iostream approach immediately uses the objects where their values should appear, as in

cout << "There were " << nMaidens << " virgins present\n";

The compiler notices the type of the nMaidens variable, inserting its proper value at the appropriate place in the sentence inserted into the cout iostream.

Compare this to the situation encountered in C. Although C compilers are getting smarter and smarter, and although a well-designed C compiler may warn you for a mismatch between a format specifier and the type of a variable encountered in the corresponding position of the argument list of a printf statement, it can't do much more than warn you. The type safety seen in C++ prevents you from making type mismatches, as there are no types to match.

Apart from this, iostreams offer more or less the same set of possibilities as the standard FILE-based I/O used in C: files can be opened, closed, positioned, read, written, etc.. In C++ the basic FILE structure, as used in C, is still available. But C++ adds to this I/O based on classes, resulting in type safety, extensibility, and a clean design.

In the ANSI/ISO standard the intent was to create architecture independent I/O. Previous implementations of the iostreams library did not always comply with the standard, resulting in many extensions to the standard. The I/O sections of previously developed software may have to be partially rewritten. This is tough for those who are now forced to modify old software, but every feature and extension that was once available can be rebuilt easily using ANSI/ISO standard conforming I/O. Not all of these reimplementations can be covered in this chapter, as many reimplementations rely on inheritance and polymorphism, which topics are formally covered by chapters 13 and 14. Selected reimplementations are provided in chapter 25, and in this chapter references to particular sections in other chapters are given where appropriate.

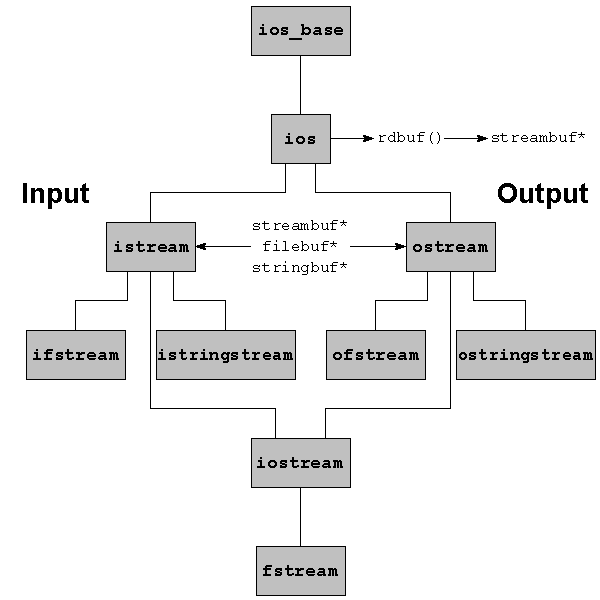

This chapter is organized as follows (see also Figure 4):

The class ios_base is the foundation upon which the iostreams I/O library was built. It defines the core of all I/O operations and offers, among other things, facilities for inspecting the state of I/O streams and for output formatting.
The class ios was directly derived from ios_base. Every class of the I/O library doing input or output is itself derived from this ios class, and so inherits its (and, by implication, ios_base's) capabilities. The reader is urged to keep this in mind while reading this chapter. The concept of inheritance is not discussed here, but rather in chapter 13.
The class ios is important in that it implements the communication with a buffer that is used by streams. This buffer is a streambuf object which is responsible for the actual I/O to/from the underlying device.Consequently iostream objects do not perform I/O operations themselves, but leave these to the (stream)buffer objects with which they are associated.
Next, basic C++ output facilities are discussed. The basic class used for output operations is ostream, defining the insertion operator as well as other facilities writing information to streams. Apart from inserting information into files it is possible to insert information into memory buffers, for which the ostringstream class is available. Formatting output is to a great extent possible using the facilities defined in the ios class, but it is also possible to insert formatting commands directly into streams using manipulators. This aspect of C++ output is discussed as well.
Basic C++ input facilities are implemented by the istream class. This class defines the extraction operator and related input facilities. Comparably to inserting information into memory buffers (using ostringstream) a class istringstream is available to extract information from memory buffers.
Finally, several advanced I/O-related topics are discussed. E.g., reading and writing from the same stream and mixing C and C++ I/O using filebuf objects. Other I/O related topics are covered elsewhere in the C++ Annotations (cf. section 20.15 and chapter 25).

Stream objects have a limited but important role: they are the interface between, on the one hand, the objects to be input or output and, on the other hand, the streambuf, which is responsible for the actual input and output to the device accessed by a streambuf object.

This approach allows us to construct a new kind of streambuf for a new kind of device, and use that streambuf in combination with the good old istream and ostream class facilities. It is important to understand the distinction between the formatting roles of iostream objects and the buffering interface to an external device as implemented in a streambuf object. Interfacing to new devices (like sockets or file descriptors) requires the construction of a new kind of streambuf, rather than a new kind of istream or ostream object. A wrapper class may be constructed around the istream or ostream classes, though, to ease the access to a special device. This is how the stringstream classes were constructed.

6.1: Special header files

Several iostream related header files are available. Depending on the situation at hand, the following header files should be used:

iosfwd: sources should include this header file if only a declaration of the stream classes is required. For example, if a function defines a reference parameter to an ostream then the compiler does not need to know exactly what an ostream is. When declaring such a function the ostream class merely needs to be be declared. One cannot use
```
class std::ostream; // erroneous declaration

void someFunction(std::ostream &str);
```
but, instead, one should use:
```
#include <iosfwd>   // correctly declares class ostream

void someFunction(std::ostream &str);
```
: sources should include this header file when using types and facilites (like ios::off_type, see below) defined in the ios class.
: sources should include this header file when using streambuf or filebuf classes. See sections 14.8 and 14.8.2.
: sources should include this preprocessor directive when using the class istream or when using classes that do both input and output. See section 6.5.1.
: sources should include this header file when using the class ostream class or when using classes that do both input and output. See section 6.4.1.
: sources should include this header file when using the global stream objects (like cin and cout).
: sources should include this header file when using the file stream classes. See sections 6.4.2, 6.5.2, and 6.6.3.
: sources should include this header file when using the string stream classes. See sections 6.4.3 and 6.5.3.
: sources should include this header file when using parameterized manipulators. See section 6.3.2.

6.2: The foundation: the class ios_base

The class std::ios_base forms the foundation of all I/O operations, and defines, among other things, facilities for inspecting the state of I/O streams and most output formatting facilities. Every stream class of the I/O library is, through the class ios, derived from this class, and inherits its capabilities. As ios_base is the foundation on which all C++ I/O was built, we introduce it here as the first class of the C++ I/O library.

Note that, as in C, I/O in C++ is not part of the language (although it is part of the ANSI/ISO standard on C++). Although it is technically possible to ignore all predefined I/O facilities, nobody does so, and the I/O library therefore represents a de facto I/O standard for C++. Also note that, as mentioned before, the iostream classes themselves are not responsible for the eventual I/O, but delegate this to an auxiliary class: the class streambuf or its derivatives.

It is neither possible nor required to construct an ios_base object directly. Its construction is always a side-effect of constructing an object further down the class hierarchy, like std::ios. Ios is the next class down the iostream hierarchy (see Figure 4). Since all stream classes in turn inherit from ios, and thus also from ios_base, the distinction between ios_base and ios is in practice not important. Therefore, facilities actually provided by ios_base will be discussed as facilities provided by ios. The reader who is interested in the true class in which a particular facility is defined should consult the relevant header files (e.g., ios_base.h and basic_ios.h).

6.3: Interfacing streambuf objects: the class ios

The std::ios class is derived directly from ios_base, and it defines de facto the foundation for all stream classes of the C++ I/O library.

Although it is possible to construct an ios object directly, this is seldom done. The purpose of the class ios is to provide the facilities of the class basic_ios, and to add several new facilites, all related to the streambuf object which is managed by objects of the class ios.

All other stream classes are either directly or indirectly derived from ios. This implies, as explained in chapter 13, that all facilities of the classes ios and ios_base are also available to other stream classes. Before discussing these additional stream classes, the features offered by the class ios (and by implication: by ios_base) are now introduced.

In some cases it may be required to include ios explicitly. An example is the situations where the formatting flags themselves (cf. section 6.3.2.2) are referred to in source code.

The class ios offers several member functions, most of which are related to formatting. Other frequently used member functions are:

std::streambuf *ios::rdbuf():

A pointer to the streambuf object forming the interface between the ios object and the device with which the ios object communicates is returned. See sections 14.8 and 25.1.2 for more information about the class streambuf.
std::streambuf *ios::rdbuf(std::streambuf *new):

The current ios object is associated with another streambuf object. A pointer to the ios object's original streambuf object is returned. The object to which this pointer points is not destroyed when the stream object goes out of scope, but is owned by the caller of rdbuf.
std::ostream *ios::tie():

A pointer to the ostream object that is currently tied to the ios object is returned (see the next member). The return value 0 indicates that currently no ostream object is tied to the ios object. See section 6.5.5 for details.
std::ostream *ios::tie(std::ostream *outs):

The ostream object is tied to current ios object. This means that the ostream object is flushed every time before an input or output action is performed by the current ios object. A pointer to the ios object's original ostream object is returned. To break the tie, pass the argument 0. See section 6.5.5 for an example.

6.3.1: Condition states

Operations on streams may fail for various reasons. Whenever an operation fails, further operations on the stream are suspended. It is possible to inspect, set and possibly clear the condition state of streams, allowing a program to repair the problem rather than having to abort. The members that are available for interrogating or manipulating the stream's state are described in the current section.

Conditions are represented by the following condition flags:

ios::badbit:

if this flag has been raised an illegal operation has been requested at the level of the streambuf object to which the stream interfaces. See the member functions below for some examples.
ios::eofbit:

if this flag has been raised, the ios object has sensed end of file.
ios::failbit:

if this flag has been raised, an operation performed by the stream object has failed (like an attempt to extract an int when no numeric characters are available on input). In this case the stream itself could not perform the operation that was requested of it.
ios::goodbit:

this flag is raised when none of the other three condition flags were raised.

Several condition member functions are available to manipulate or determine the states of ios objects. Originally they returned int values, but their current return type is bool:

bool ios::bad():

the value true is returned when the stream's badbit has been set and false otherwise. If true is returned it indicates that an illegal operation has been requested at the level of the streambuf object to which the stream interfaces. What does this mean? It indicates that the streambuf itself is behaving unexpectedly. Consider the following example:
```
std::ostream error(0);
```
Here an ostream object is constructed without providing it with a working streambuf object. Since this streambuf will never operate properly, its badbit flag is raised from the very beginning: error.bad() returns true.
bool ios::eof():

the value true is returned when end of file (EOF) has been sensed (i.e., the eofbit flag has been set) and false otherwise. Assume we're reading lines line-by-line from cin, but the last line is not terminated by a final \n character. In that case std::getline attempting to read the \n delimiter hits end-of-file first. This raises the eofbit flag and cin.eof() returns true. For example, assume std::string str and main executing the statements:
```
getline(cin, str);
cout << cin.eof();
```
Then
```
echo "hello world" | program
```
prints the value 0 (no EOF sensed). But after
```
echo -n "hello world" | program
```
the value 1 (EOF sensed) is printed.
bool ios::fail():

the value true is returned when bad returns true or when the failbit flag was set. The value false is returned otherwise. In the above example, cin.fail() returns false, whether we terminate the final line with a delimiter or not (as we've read a line). However, executing another getline results in raising the failbit flag, causing cin::fail() to return true. In general: fail returns true if the requested stream operation failed. A simple example showing this consists of an attempt to extract an int when the input stream contains the text hello world. The value not fail() is returned by the bool interpretation of a stream object (see below).

bool ios::good():

the value of the goodbit flag is returned. It equals true when none of the other condition flags (badbit, eofbit, failbit) was raised. Consider the following little program:

#include <iostream>
#include <string>

using namespace std;

void state()
{
    cout << "\n"
            "Bad: " << cin.bad() << " "
            "Fail: " << cin.fail() << " "
            "Eof: " << cin.eof() << " "
            "Good: " << cin.good() << '\n';
}

int main()
{
    string line;
    int x;

    cin >> x;
    state();

    cin.clear();
    getline(cin, line);
    state();

    getline(cin, line);
    state();
}

When this program processes a file having two lines, containing, respectively, hello and world, while the second line is not terminated by a \n character the following is shown:

Bad: 0 Fail: 1 Eof: 0 Good: 0

Bad: 0 Fail: 0 Eof: 0 Good: 1

Bad: 0 Fail: 0 Eof: 1 Good: 0

Thus, extracting x fails (good returning false). Then, the error state is cleared, and the first line is successfully read (good returning true). Finally the second line is read (incompletely): good returning false, and eof returning true.

Interpreting streams as bool values:

streams may be used in expressions expecting logical values. Some examples are:
```
if (cin)                // cin itself interpreted as bool
if (cin >> x)           // cin interpreted as bool after an extraction
if (getline(cin, str))  // getline returning cin
```
When interpreting a stream as a logical value, it is actually not fail() that is interpreted. The above examples may therefore be rewritten as:
```
if (not cin.fail())
if (not (cin >> x).fail())
if (not getline(cin, str).fail())
```
The former incantation, however, is used almost exclusively.

The following members are available to manage error states:

void ios::clear():

When an error condition has occurred, and the condition can be repaired, then clear can be used to clear the error state of the file. An overloaded version exists accepting state flags, that are set after first clearing the current set of flags: clear(int state). Its return type is void
ios::iostate ios::rdstate():

The current set of flags that are set for an ios object are returned (as an int). To test for a particular flag, use the bitwise and operator:
```
if (!(iosObject.rdstate() & ios::failbit))
{
    // last operation didn't fail
}
```
Note that this test cannot be performed for the goodbit flag as its value equals zero. To test for good use a construction like:
```
if (iosObject.rdstate() == ios::goodbit)
{
    // state is `good'
}
```
void ios::setstate(ios::iostate state):

A stream may be assigned a certain set of states using setstate. Its return type is void. E.g.,
```
    cin.setstate(ios::failbit);     // set state to `fail'
```
To set multiple flags in one setstate() call use the bitor operator:
```
cin.setstate(ios::failbit | ios::eofbit)
```

The member clear is a shortcut to clear all error flags. Of course, clearing the flags doesn't automatically mean the error condition has been cleared too. The strategy should be:

An error condition is detected,
The error is repaired
The member clear is called.

C++ supports an exception mechanism to handle exceptional situations. According to the ANSI/ISO standard, exceptions can be used with stream objects. Exceptions are covered in chapter 10. Using exceptions with stream objects is covered in section 10.7.

6.3.2: Formatting output and input

The way information is written to streams (or, occasionally, read from streams) is controlled by formatting flags.

Formatting is used when it is necessary to, e.g., set the width of an output field or input buffer and to determine the form (e.g., the radix) in which values are displayed. Most formatting features belong to the realm of the ios class. Formatting is controlled by flags, defined by the ios class. These flags may be manipulated in two ways: using specialized member functions or using manipulators, which are directly inserted into or extracted from streams. There is no special reason for using either method; usually both methods are possible. In the following overview the various member functions are first introduced. Following this the flags and manipulators themselves are covered. Examples are provided showing how the flags can be manipulated and what their effects are.

Many manipulators are parameterless and are available once a stream header file (e.g., iostream) has been included. Some manipulators require arguments. To use the latter manipulators the header file iomanip must be included.

6.3.2.1: Format modifying member functions

Several member functions are available manipulating the I/O formatting flags. Instead of using the members listed below manipulators are often available that may directly be inserted into or extracted from streams. The available members are listed in alphabetical order, but the most important ones in practice are setf, unsetf and width.

ios &ios::copyfmt(ios &obj):

all format flags of obj are copied to the current ios object. The current ios object is returned.
ios::fill() const:

the current padding character is returned. By default, this is the blank space.
ios::fill(char padding):

the padding character is redefined, the padding character that was used before the redefinition is returned. Instead of using this member function the setfill manipulator may be inserted directly into an ostream. Example:
```
cout.fill('0');         // use '0' as padding char
cout << setfill('+');   // use '+' as padding char
```
ios::fmtflags ios::flags() const:

the current set of flags controlling the format state of the stream for which the member function is called is returned. To inspect whether a particular flag was set, use the bit_and operator. Example:
```
if (cout.flags() & ios::hex)
    cout << "Integral values are printed as hex numbers\n"
```
ios::fmtflags ios::flags(ios::fmtflags flagset):

the previous set of flags are returned and the new set of flags are defined by flagset. Multiple flags are specified using the bitor operator. Example:
```
// change the representation to hexadecimal
cout.flags(ios::hex | cout.flags() & ~ios::dec);
```
int ios::precision() const:

the number of significant digits used when outputting floating point values is returned (default: 6).
int ios::precision(int signif):

the number of significant digits to use when outputting real values is set to signif. The previously used number of significant digits is returned. If the number of required digits exceeds signif then the number is displayed in scientific notation (cf. section 6.3.2.2). Manipulator: setprecision. Example:
```
cout.precision(3);          // 3 digits precision
cout << setprecision(3);    // same, using the manipulator

cout << 1.23 << " " << 12.3 << " " << 123.12 << " " << 1234.3 << '\n';
// displays: 1.23 12.3 123 1.23e+03
```
ios::fmtflags ios::setf(ios::fmtflags flags):

sets one or more formatting flags (use the bitor operator to combine multiple flags). Already set flags are not affected. The previous set of flags is returned. Instead of using this member function the manipulator setiosflags may be used. Examples are provided in the next section (6.3.2.2).

ios::fmtflags ios::setf(ios::fmtflags flags, ios::fmtflags mask):

clears all flags mentioned in mask and sets the flags specified in flags. The previous set of flags is returned. Some examples are (but see the next section (6.3.2.2) for a more thorough discussion):

// left-adjust information in wide fields:
cout.setf(ios::left, ios::adjustfield);

// display integral values as hexadecimal numbers:
cout.setf(ios::hex, ios::basefield);

// display floating point values in scientific notation:
cout.setf(ios::scientific, ios::floatfield);

ios::fmtflags ios::unsetf(fmtflags flags):

the specified formatting flags are cleared (leaving the remaining flags unaltered) and returns the previous set of flags. A request to unset an active default flag (e.g., cout.unsetf(ios::dec)) is ignored. Instead of this member function the manipulator resetiosflags may also be used. Example:

cout << 12.24;              // displays  12.24
cout.setf(ios::fixed);
cout << 12.24;              // displays  12.240000
cout.unsetf(ios::fixed);    // undo a previous ios::fixed setting.
cout << 12.24;              // displays  12.24
cout << resetiosflags(ios::fixed);  // using manipulator rather
                                    // than unsetf

int ios::width() const:

the currently active output field width to use on the next insertion is returned. The default value is 0, meaning `as many characters as needed to write the value'.
int ios::width(int nchars):

the field width of the next insertion operation is set to nchars, returning the previously used field width. This setting is not persistent. It is reset to 0 after every insertion operation. Manipulator: std::setw(int). Example:
```
cout.width(5);
cout << 12;                     // using 5 chars field width
cout << setw(12) << "hello";    // using 12 chars field width
```

6.3.2.2: Formatting flags

Most formatting flags are related to outputting information. Information can be written to output streams in basically two ways: using binary output information is written directly to an output stream, without converting it first to some human-readable format and using formatted output by which values stored in the computer's memory are converted to human-readable text first. Formatting flags are used to define the way this conversion takes place. In this section all formatting flags are covered. Formatting flags may be (un)set using member functions, but often manipulators having the same effect may also be used. For each of the flags it is shown how they can be controlled by a member function or -if available- a manipulator.

To display information in wide fields:

ios::internal:

to add fill characters (blanks by default) between the minus sign of negative numbers and the value itself. Other values and data types are right-adjusted. Manipulator: std::internal. Example:
```
cout.setf(ios::internal, ios::adjustfield);
cout << internal;       // same, using the manipulator

cout << '\'' << setw(5) << -5 << "'\n";  // displays '-   5'
```

ios::left:

to left-adjust values in fields that are wider than needed to display the values. Manipulator: std::left. Example:

cout.setf(ios::left, ios::adjustfield);
cout << left;           // same, using the manipulator

cout << '\'' << setw(5) << "hi" << "'\n";  // displays 'hi   '

ios::right:

to right-adjust values in fields that are wider than needed to display the values. Manipulator: std::right. This is the default. Example:

cout.setf(ios::right, ios::adjustfield);
cout << right;          // same, using the manipulator

cout << '\'' << setw(5) << "hi" << "'\n";  // displays '   hi'

Using various number representations:

ios::dec:

to display integral values as decimal numbers. Manipulator: std::dec. This is the default. Example:

cout.setf(ios::dec, ios::basefield);
cout << dec;            // same, using the manipulator
cout << 0x10;           // displays 16

ios::hex:

to display integral values as hexadecimal numbers. Manipulator: std::hex. Example:

cout.setf(ios::hex, ios::basefield);
cout << hex;            // same, using the manipulator
cout << 16;             // displays 10

ios::oct:

to display integral values as octal numbers. Manipulator: std::oct. Example:

cout.setf(ios::oct, ios::basefield);
cout << oct;            // same, using the manipulator
cout << 16;             // displays 20

std::setbase(int radix):

This is a manipulator that can be used to change the number representation to decimal, hexadecimal or octal. Example:

cout << setbase(8);     // octal numbers, use 10 for
                        // decimal, 16 for hexadecimal
cout << 16;             // displays 20

Fine-tuning displaying values:

ios::boolalpha:

logical values may be displayed as text using the text true for the true logical value, and false for the false logical value using boolalpha. By default this flag is not set. Complementary flag: ios::noboolalpha. Manipulators: std::boolalpha and std::noboolalpha. Example:
```
cout.setf(ios::boolalpha);
cout << boolalpha;      // same, using the manipulator
cout << (1 == 1);       // displays true
```
ios::showbase:

to display the numeric base of integral values. With hexadecimal values the 0x prefix is used, with octal values the prefix 0. For the (default) decimal value no particular prefix is used. Complementary flag: ios::noshowbase. Manipulators: std::showbase and std::noshowbase. Example:
```
cout.setf(ios::showbase);
cout << showbase;       // same, using the manipulator
cout << hex << 16;      // displays 0x10
```

ios::showpos:

to display the + sign with positive decimal (only) values. Complementary flag: ios::noshowpos. Manipulators: std::showpos and std::noshowpos. Example:

cout.setf(ios::showpos);
cout << showpos;            // same, using the manipulator
cout << 16;                 // displays +16
cout.unsetf(ios::showpos);  // Undo showpos
cout << 16;                 // displays 16

ios::uppercase:

to display letters in hexadecimal values using capital letters. Complementary flag: ios::nouppercase. Manipulators: std::uppercase and std::nouppercase. By default lower case letters are used. Example:
```
cout.setf(ios::uppercase);
cout << uppercase;            // same, using the manipulator
cout << hex << showbase <<
        3735928559;           // displays 0XDEADBEEF
```

Displaying floating point numbers

ios::fixed:

to display real values using a fixed decimal point (e.g., 12.25 rather than 1.225e+01), the fixed formatting flag is used. It can be used to set a fixed number of digits behind the decimal point. Manipulator: fixed. Example:

cout.setf(ios::fixed, ios::floatfield);
cout.precision(3);          // 3 digits behind the .

    // Alternatively:
cout << setiosflags(ios::fixed) << setprecision(3);

cout << 3.0 << " " << 3.01 << " " << 3.001 << '\n';
        << 3.0004 << " " << 3.0005 << " " << 3.0006 << '\n'
    // Results in:
    // 3.000 3.010 3.001
    // 3.000 3.001 3.001

The example shows that 3.0005 is rounded away from zero, becoming 3.001 (likewise -3.0005 becomes -3.001). First setting precision and then fixed has the same effect.

ios::scientific:

to display real values in scientific notation (e.g., 1.24e+03). Manipulator: std::scientific. Example:

cout.setf(ios::scientific, ios::floatfield);
cout << scientific;         // same, using the manipulator
cout << 12.25;              // displays 1.22500e+01

ios::showpoint:

to display a trailing decimal point and trailing decimal zeros when real numbers are displayed. Complementary flag: ios::noshowpoint. Manipulators: std::showpoint, std::noshowpoint. Example:
```
cout << fixed << setprecision(3);   // 3 digits behind .

cout.setf(ios::showpoint);      // set the flag
cout << showpoint;              // same, using the manipulator

cout << 16.0 << ", " << 16.1 << ", " << 16;
// displays: 16.000, 16.100, 16
```
Note that the final 16 is an integral rather than a floating point number, so it has no decimal point. So showpoint has no effect. If ios::showpoint is not active trailing zeros are discarded. If the fraction is zero the decimal point is discarded as well. Example:
```
cout.unsetf(ios::fixed, ios::showpoint);    // unset the flags

cout << 16.0 << ", " << 16.1;
// displays: 16, 16.1
```

Handling whitespace and flushing streams

std::endl:

manipulator inserting a newline character and flushing the stream. Often flushing the stream is not required and doing so would needlessly slow down I/O processing. Consequently, using endl should be avoided (in favor of inserting \n) unless flushing the stream is explicitly intended. Note that streams are automatically flushed when the program terminates or when a stream is `tied' to another stream (cf. tie in section 6.3). Example:
```
cout << "hello" << endl;    // prefer: << '\n';
```
std::ends:

manipulator inserting a 0-byte into a stream. It is usually used in combination with memory-streams (cf. section 6.4.3).
std::flush:

a stream may be flushed using this member. Often flushing the stream is not required and doing so would needlessly slow down I/O processing. Consequently, using flush should be avoided unless it is explicitly required to do so. Note that streams are automatically flushed when the program terminates or when a stream is tied to another stream (cf. tie in section 6.3). Example:
```
cout << "hello" << flush;    // avoid if possible.
```

ios::skipws:

leading whitespace characters (blanks, tabs, newlines, etc.) are skipped when a value is extracted from a stream. This is the default. If the flag is not set, leading whitespace characters are not skipped. Manipulator: std::skipws. Example:

cin.setf(ios::skipws);  // to unset, use
                        //  cin.unsetf(ios::skipws)

cin >> skipws;          // same, using the manipulator
int value;
cin >> value;           // skips initial blanks

ios::unitbuf:

the stream for which this flag is set flushes its buffer after every output operation Often flushing a stream is not required and doing so would needlessly slow down I/O processing. Consequently, setting unitbuf should be avoided unless flushing the stream is explicitly intended. Note that streams are automatically flushed when the program terminates or when a stream is tied to another stream (cf. tie in section 6.3). Complementary flag: ios::nounitbuf. Manipulators: std::unitbuf, std::nounitbuf. Example:
```
cout.setf(ios::unitbuf);
cout << unitbuf;            // same, using the manipulator

cout.write("xyz", 3);       // flush follows write.
```
std::ws:

manipulator removing all whitespace characters (blanks, tabs, newlines, etc.) at the current file position. White space characters are removed if present even if the flag ios::noskipws has been set. Example (assume the input contains 4 blank characters followed by the character X):
```
cin >> ws;      // skip whitespace
cin.get();      // returns 'X'
```

6.4: Output

In C++ output is primarily based on the std::ostream class. The ostream class defines the basic operators and members inserting information into streams: the insertion operator (<<), and special members like write writing unformatted information to streams.

The class ostream acts as base class for several other classes, all offering the functionality of the ostream class, but adding their own specialties. In the upcoming sections the following classes are discussed:

The class ostream, offering the basic output facilities;
The class ofstream, allowing us to write files (comparable to C's fopen(filename, "w"));
The class ostringstream, allowing us to write information to memory (comparable to C's sprintf function).

6.4.1: Basic output: the class ostream

The class ostream defines basic output facilities. The cout, clog and cerr objects are all ostream objects. All facilities related to output as defined by the ios class are also available in the ostream class.

We may define ostream objects using the following ostream constructor:

std::ostream object(std::streambuf *sb):

this constructor creates an ostream object which is a wrapper around an existing std::streambuf object. It isn't possible to define a plain ostream object (e.g., using std::ostream out;) that can thereupon be used for insertions. When cout or its friends are used, we are actually using a predefined ostream object that has already been defined for us and interfaces to the standard output stream using a (also predefined) streambuf object handling the actual interfacing.

It is, however, possible to define an ostream object passing it a 0-pointer. Such an object cannot be used for insertions (i.e., it raises its ios::bad flag when something is inserted into it), but it may be given a streambuf later. Thus it may be preliminary constructed, suspending its use until an appropriate streambuf becomes available (see also section 14.8.3).

To define the ostream class in C++ sources, the <ostream> header file must be included. To use the predefined ostream objects (std::cerr, std::cout etc.) the <iostream> header file must be included.

6.4.1.1: Writing to ostream objects

The class ostream supports both formatted and binary output.

The insertion operator (<<) is used to insert values in a type safe way into ostream objects. This is called formatted output, as binary values which are stored in the computer's memory are converted to human-readable ASCII characters according to certain formatting rules.

The insertion operator points to the ostream object to receive the information. The normal associativity of << remains unaltered, so when a statement like

cout << "hello " << "world";

is encountered, the leftmost two operands are evaluated first (cout << "hello "), and an ostream & object, which is actually the same cout object, is returned. Now, the statement is reduced to

cout << "world";

and the second string is inserted into cout.

The << operator has a lot of (overloaded) variants, so many types of variables can be inserted into ostream objects. There is an overloaded << operator expecting an int, a double, a pointer, etc. etc.. Each operator returns the ostream object into which the information so far has been inserted, and can thus immediately be followed by the next insertion.

Streams lack facilities for formatted output like C's printf and vprintf functions. Although it is not difficult to implement these facilities in the world of streams, printf-like functionality is hardly ever required in C++ programs. Furthermore, as it is potentially type-unsafe, it might be better to avoid this functionality completely.

When binary files must be written, normally no text-formatting is used or required: an int value should be written as a series of raw bytes, not as a series of ASCII numeric characters 0 to 9. The following member functions of ostream objects may be used to write `binary files':

ostream& put(char c):

to write a single character to the output stream. Since a character is a byte, this member function could also be used for writing a single character to a text-file.
ostream& write(char const *buffer, int length):

to write at most length bytes, stored in the char const *buffer to the ostream object. Bytes are written as they are stored in the buffer, no formatting is done whatsoever. Note that the first argument is a char const *: a type cast is required to write any other type. For example, to write an int as an unformatted series of byte-values use:
```
int x;
out.write(reinterpret_cast<char const *>(&x), sizeof(int));
```
The bytes written by the above write call are written to the ostream in an order depending on the endian-ness of the underlying hardware. Big-endian computers write the most significant byte(s) of multi-byte values first, little-endian computers first write the least significant byte(s).

6.4.1.2: ostream positioning

Although not every ostream object supports repositioning, they usually do. This means that it is possible to rewrite a section of the stream which was written earlier. Repositioning is frequently used in database applications where it must be possible to access the information in the database at random.

The current position can be obtained and modified using the following members:

ios::pos_type tellp():

the current (absolute) position in the file where the next write-operation to the stream will take place is returned.
ostream &seekp(ios::off_type step, ios::seekdir org):

modifies a stream's actual position. The function expects an off_type step representing the number of bytes the current stream position is moved with respect to org. The step value may be negative, zero or positive.

The origin of the step, org is a value in the ios::seekdir enumeration. Its values are:
- ios::beg:

  the stepsize is computed relative to the beginning of the stream. This value is used by default.
- ios::cur:

  the stepsize is computed relative to the current position of the stream (as returned by tellp).
- ios::end:

  the stepsize is interpreted relative to the current end position of the stream.
It is OK to seek or write beyond the last file position. Writing bytes to a location beyond EOF will pad the intermediate bytes with 0-valued bytes: null-bytes. Seeking before ios::beg raises the ios::fail flag.

6.4.1.3: ostream flushing

Unless the ios::unitbuf flag has been set, information written to an ostream object is not immediately written to the physical stream. Rather, an internal buffer is filled during the write-operations, and when full it is flushed.

The stream's internal buffer can be flushed under program control:

ostream& flush():

any buffered information stored internally by the ostream object is flushed to the device to which the ostream object interfaces. A stream is flushed automatically when:
- the object ceases to exist;
- the endl or flush manipulators (see section 6.3.2.2) are inserted into an ostream object;
- a stream supporting the close-operation is explicitly closed (e.g., a std::ofstream object, cf. section 6.4.2).

6.4.2: Output to files: the class ofstream

The std::ofstream class is derived from the ostream class: it has the same capabilities as the ostream class, but can be used to access files or create files for writing.

In order to use the ofstream class in C++ sources, the <fstream> header file must be included. Including fstream does not automatically make available the standard streams cin, cout and cerr. Include iostream to declare these standard streams.

The following constructors are available for ofstream objects:

ofstream object:

this is the basic constructor. It defines an ofstream object which may be associated with an actual file later, using its open() member (see below).
ofstream object(char const *name, ios::openmode mode = ios::out):

this constructor defines an ofstream object and associates it immediately with the file named name using output mode mode. Section 6.4.2.1 provides an overview of available output modes. Example:
```
ofstream out("/tmp/scratch");
```

It is not possible to open an ofstream using a file descriptor. The reason for this is (apparently) that file descriptors are not universally available over different operating systems. Fortunately, file descriptors can be used (indirectly) with a std::streambuf object (and in some implementations: with a std::filebuf object, which is also a streambuf). Streambuf objects are discussed in section 14.8, filebuf objects are discussed in section 14.8.2.

Instead of directly associating an ofstream object with a file, the object can be constructed first, and opened later.

void open(char const *name, ios::openmode mode = ios::out):

associates an ofstream object with an actual file. If the ios::fail flag was set before calling open and opening succeeds the flag is cleared. Opening an already open stream fails. To reassociate a stream with another file it must first be closed:
```
ofstream out("/tmp/out");
out << "hello\n";
out.close();        // flushes and closes out
out.open("/tmp/out2");
out << "world\n";
```
void close():

closes the ofstream object. The function sets the ios::fail flag of the closed object. Closing the file flushes any buffered information to the associated file. A file is automatically closed when the associated ofstream object ceases to exist.
bool is_open() const:

assume a stream was properly constructed, but it has not yet been attached to a file. E.g., the statement ofstream ostr was executed. When we now check its status through good(), a non-zero (i.e., OK) value is returned. The good status here indicates that the stream object has been constructed properly. It doesn't mean the file is also open. To test whether a stream is actually open, is_open should be called. If it returns true, the stream is open. Example:
```
#include <fstream>
#include <iostream>

using namespace std;

int main()
{
    ofstream of;

    cout << "of's open state: " << boolalpha << of.is_open() << '\n';

    of.open("/dev/null");       // on Unix systems

    cout << "of's open state: " << of.is_open() << '\n';
}
/*
    Generated output:
of's open state: false
of's open state: true
*/
```

6.4.2.1: Modes for opening stream objects

The following file modes or file flags are available when constructing or opening ofstream (or istream, see section 6.5.2) objects. The values are of type ios::openmode. Flags may be combined using the bitor operator.

ios::app:

reposition the stream to its end before every output command (see also ios::ate below). The file is created if it doesn't yet exist. When opening a stream in this mode any existing content of the file is kept.
ios::ate:

start initially at the end of the file. Note that any existing content is only kept if some other flag tells the object to do so. For example ofstream out("gone", ios::ate) rewrites the file gone, because the implied ios::out causes the rewriting. If rewriting of an existing file should be prevented, the ios::in mode should be specified too. However, when ios::in is specified the file must already exist. The ate mode only initially positions the file at the end of file position. After that information may be written in the middle of the file using seekp. When the app mode is used information is only written at end of file (effectively ignoring seekp operations).
ios::binary:

open a file in binary mode (used on systems distinguishing text- and binary files, like MS-Windows).
ios::in:

open the file for reading. The file must exist.
ios::out:

open the file for writing. Create it if it doesn't yet exist. If it exists, the file is rewritten.
ios::trunc:

start initially with an empty file. Any existing content of the file is lost.

The following combinations of file flags have special meanings:

in | out:           The stream may be read and written. However, the
                    file must exist.
in | out | trunc:   The stream may be read and written. It is
                    (re)created empty first.

An interesting subtlety is that the open members of the ifstream, ofstream and fstream classes have a second parameter of type ios::openmode. In contrast to this, the bitor operator returns an int when applied to two enum-values. The question why the bitor operator may nevertheless be used here is answered in a later chapter (cf. section 11.13).

6.4.3: Output to memory: the class ostringstream

To write information to memory using stream facilities, std::ostringstream objects should be used. As the class ostringstream is derived from the class ostream all ostream's facilities are available to ostringstream objects as well. To use and define ostringstream objects the header file <sstream> must be included. In addition the class ostringstream offers the following constructors and members:

ostringstream ostr(string const &init, ios::openmode mode = ios::out):

when specifying openmode as ios::ate, the ostringstream object is initialized by the string init and remaining insertions are appended to the content of the ostringstream object.
ostringstream ostr(ios::openmode mode = ios::out):

this constructor can also be used as default constructor. Alternatively it allows, e.g., forced additions at the end of the information stored in the object so far (using ios::app). Example:
```
std::ostringstream out;
```
std::string str() const:

a copy of the string that is stored inside the ostringstream object is returned.
void str(std::string const &str):

the current object is reinitialized with new initial content.

The following example illustrates the use of the ostringstream class: several values are inserted into the object. Then, the text contained by the ostringstream object is stored in a std::string, whose length and content are thereupon printed. Such ostringstream objects are most often used for doing type to string conversions, like converting int values to text. Formatting flags can be used with ostringstreams as well, as they are part of the ostream class.

Here is an example showing an ostringstream object being used:

#include <iostream>
#include <sstream>

using namespace std;

int main()
{
    ostringstream ostr("hello ", ios::ate);

    cout << ostr.str() << '\n';

    ostr.setf(ios::showbase);
    ostr.setf(ios::hex, ios::basefield);
    ostr << 12345;

    cout << ostr.str() << '\n';

    ostr << " -- ";
    ostr.unsetf(ios::hex);
    ostr << 12;

    cout << ostr.str() << '\n';

    ostr.str("new text");
    cout << ostr.str() << '\n';

    ostr.seekp(4, ios::beg);
    ostr << "world";
    cout << ostr.str() << '\n';
}
/*
    Output from this program:
hello
hello 0x3039
hello 0x3039 -- 12
new text
new world
*/

6.4.4: The put_time manipulator

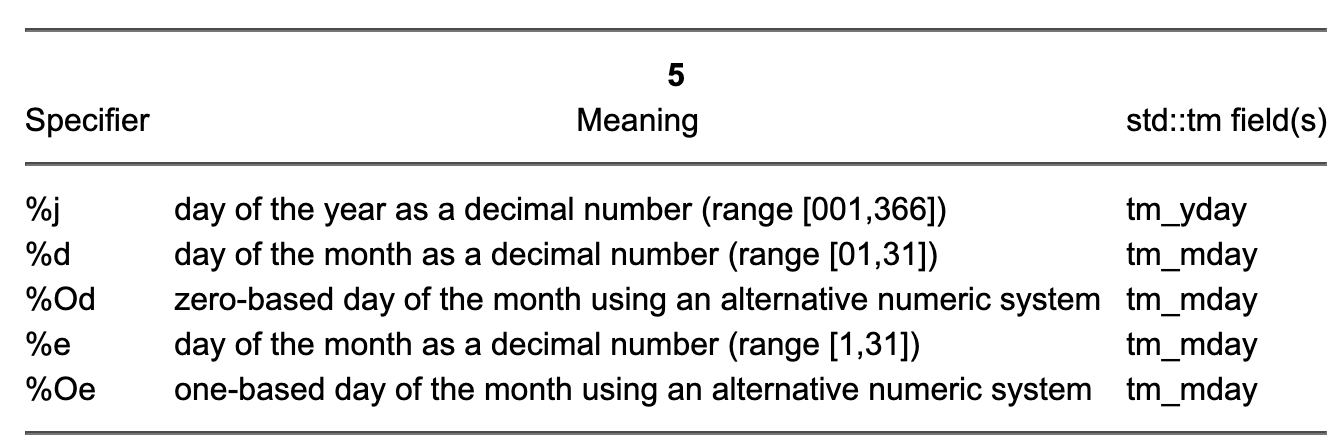

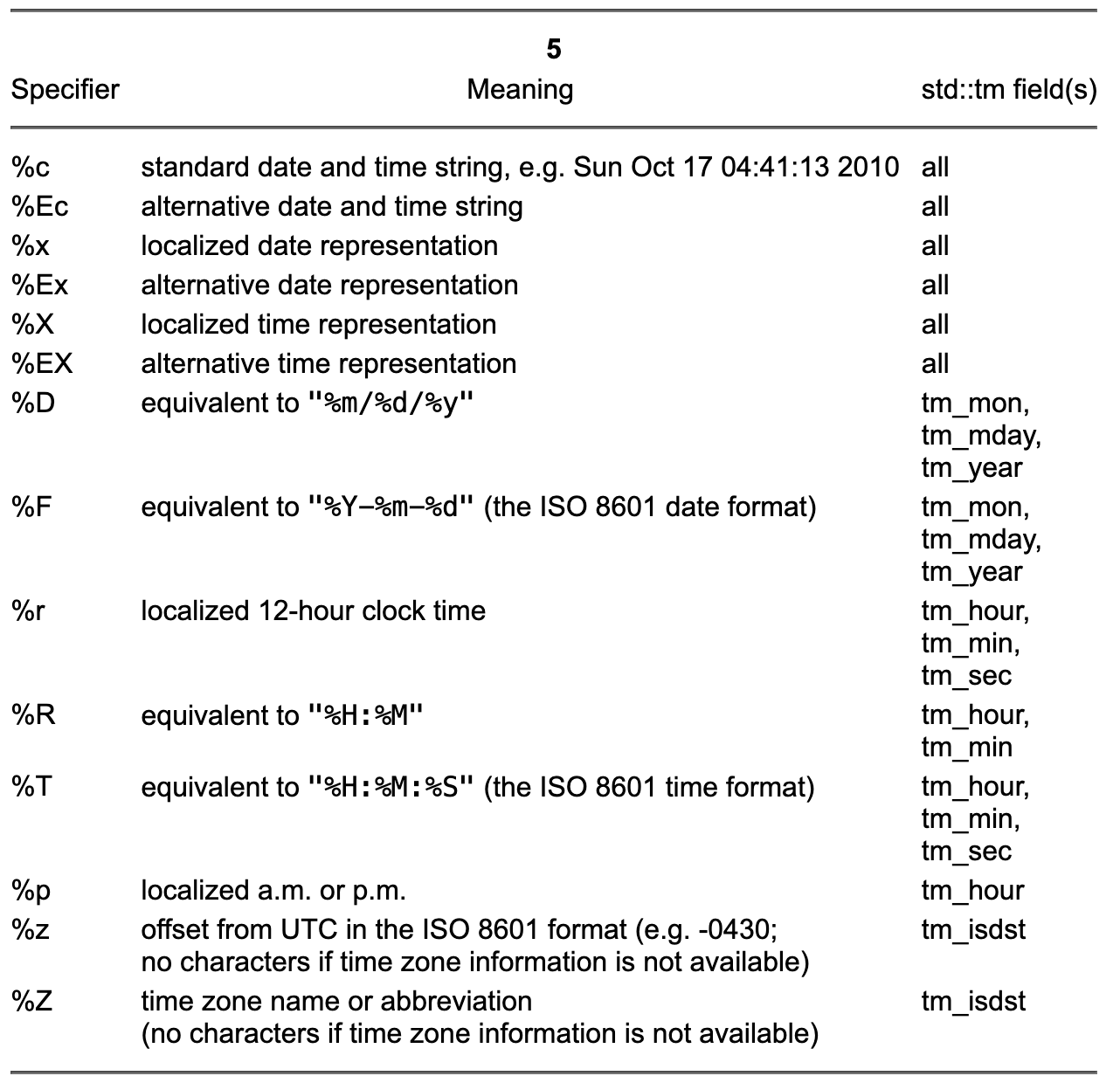

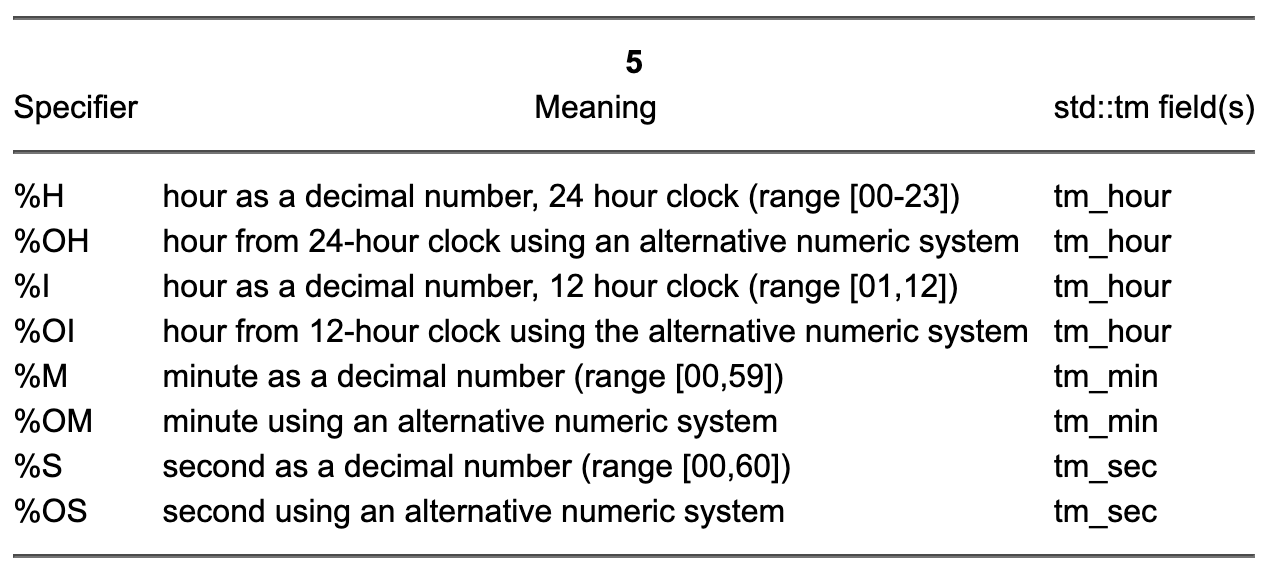

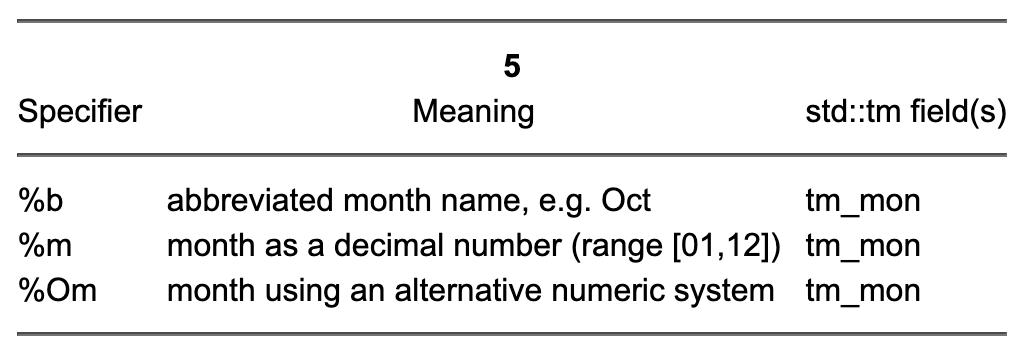

The manipulator std::put_time(std::tm const *specs, char const *fmt) can be used to insert time specifications into std::ostream objects.

Time specifications are provided in std::tm objects, and the way the time should be displayed is defined by the format string fmt.

Starting with a chrono::time_point the following steps must be performed to insert the time point's time into a std::ostream:

Obtain a time_point (e.g.: system_clock{}.now());
Pass the time point to the clock's to_time_t function, saving the returned time_t value:
```
time_t secs = system_clock::to_time_t( system_clock{}.now() );
```
Pass sec's address to either std::localtime or std::gmtime. These functions return std::tm structs containing the required time components expressed in, respectively, the computer's local time or GMT;

Pass the return value of either localtime or gmtime together with a format string (e.g., "%c") to put_time, inserting it into an std::ostream:

// displays, e.g., Mon Nov  4 21:34:59 2019
time_t secs = system_clock::to_time_t( system_clock{}.now() );
std::cout << std::put_time(std::localtime(&secs), "%c") << '\n';

A simple function returning put_time's return value and expecting a time_point and format string can be defined which handles the above two statements. E.g., (omitting the std:: and std::chrono:: specifications for brevity):

auto localTime(time_point<system_clock> const &tp, char const *fmt)
{
    time_t secs = system_clock::to_time_t( tp );
    return put_time(localtime(&secs), fmt);
}
            // used as:
cout << localTime(system_clock{}.now(), "%c") << '\n';

Many more format specifiers are recognized by put_time. Specifiers start with %. To display a percent character as part of the format string write it twice: %%. In addition to the standard escape sequences, %n can be used instead of \n, and %t can be used instead of \t.

6.5: Input

In C++ input is primarily based on the std::istream class. The istream class defines the basic operators and members extracting information from streams: the extraction operator (>>), and special members like istream::read reading unformatted information from streams.

The class istream acts as base class for several other classes, all offering the functionality of the istream class, but adding their own specialties. In the upcoming sections the following classes are discussed:

The class istream, offering the basic facilities for doing input;
The class ifstream, allowing us to read files (comparable to C's fopen(filename, "r"));
The class istringstream, allowing us to extract information from memory rather than from file (comparable to C's sscanf function).

6.5.1: Basic input: the class istream

The class istream defines basic input facilities. The cin object, is an istream object. All facilities related to input as defined by the ios class are also available in the istream class.

We may define istream objects using the following istream constructor:

istream object(streambuf *sb):

this constructor can be used to construct a wrapper around an existing std::streambuf object. Similarly to ostream objects, istream objects may be defined by passing it initially a 0-pointer. See section 6.4.1 for a discussion, see also section 14.8.3, and see chapter 25 for examples.

To define the istream class in C++ sources, the <istream> header file must be included. To use the predefined istream object cin, the <iostream> header file must be included.

6.5.1.1: Reading from istream objects

The class istream supports both formatted and unformatted (binary) input. The extraction operator (operator>>) is used to extract values in a type safe way from istream objects. This is called formatted input, whereby human-readable ASCII characters are converted, according to certain formatting rules, to binary values.

The extraction operator points to the objects or variables to receive new values. The normal associativity of >> remains unaltered, so when a statement like

cin >> x >> y;

is encountered, the leftmost two operands are evaluated first (cin >> x), and an istream & object, which is actually the same cin object, is returned. Now, the statement is reduced to

cin >> y

and the y variable is extracted from cin.

The >> operator has many (overloaded) variants and thus many types of variables can be extracted from istream objects. There is an overloaded >> available for the extraction of an int, of a double, of a string, of an array of characters, possibly to the location pointed at by a pointer, etc., etc.. String or character array extraction by default first skips all whitespace characters, and then extracts all consecutive non-whitespace characters. Once an extraction operator has been processed the istream object from which the information was extracted is returned and it can immediately be used for additional istream operations that appear in the same expression.

Streams do not support facilities for formatted input as offered by C's scanf and vscanf functions. Although it is not difficult to add such facilities to the world of streams, scanf-like functionality is in practice never needed in C++ programs. Furthermore, as it is potentially type-unsafe, it is better to avoid using C-type formatted input.

When binary files must be read, the information should normally not be formatted: an int value should be read as a series of unaltered bytes, not as a series of ASCII numeric characters 0 to 9. The following member functions for reading information from istream objects are available:

int gcount() const:

the number of characters read from the input stream by the last unformatted input operation is returned.
int get():

the next available single character is returned as an unsigned char value using an int return type. EOF is returned if no more character are available.
istream &get(char &ch):

the next single character read from the input stream is stored in ch. The member function returns the stream itself which may be inspected to determine whether a character was obtained or not.
istream &get(char *buffer, int len, char delim = '\n'):

At most len - 1 characters are read from the input stream into the array starting at buffer, which should be at least len bytes long. Reading also stops when the delimiter delim is encountered. However, the delimiter itself is not removed from the input stream.

Having stored the characters into buffer, a 0-valued character is written beyond the last character stored into the buffer. The functions eof and fail (see section 6.3.1) return 0 (false) if the delimiter was encountered before reading len - 1 characters or if the delimiter was not encountered after reading len - 1 characters. It is OK to specifiy a 0-valued character delimiter: this way NTBSs may be read from a (binary) file.
istream &getline(char *buffer, int len, char delim = '\n'):

this member function operates analogously to the get member function, but getline removes delim from the stream if it is actually encountered. The delimiter itself, if encountered, is not stored in the buffer. If delim was not found (before reading len - 1 characters) the fail member function, and possibly also eof returns true. Realize that the std::string class also offers a function std::getline which is generally preferred over this getline member function that is described here (see section 5.2.4).
istream &ignore():

one character is skipped from the input stream.
istream &ignore(int n):

n characters are skipped from the input stream.
istream &ignore(int n, int delim):

at most n characters are skipped but skipping characters stops after having removed delim from the input stream.
int peek():

this function returns the next available input character, but does not actually remove the character from the input stream. EOF is returned if no more characters are available.
istream &putback(char ch): The character ch is pushed back into the input stream, to be read again as the next available character. EOF is returned if this is not allowed. Normally, it is OK to put back one character. Example:
```
string value;
cin >> value;
cin.putback('X');
                // displays: X
cout << static_cast<char>(cin.get());
```
istream &read(char *buffer, int len):

At most len bytes are read from the input stream into the buffer. If EOF is encountered first, fewer bytes are read, with the member function eof returning true. This function is commonly used when reading binary files. Section 6.5.2 contains an example in which this member function is used. The member function gcount() may be used to determine the number of characters that were retrieved by read.
istream &readsome(char *buffer, int len):

at most len bytes are read from the input stream into the buffer. All available characters are read into the buffer, but if EOF is encountered, fewer bytes are read, without setting the ios::eofbit or ios::failbit.
istream &unget():

the last character that was read from the stream is put back.

6.5.1.2: istream positioning

Although not every istream object supports repositioning, some do. This means that it is possible to read the same section of a stream repeatedly. Repositioning is frequently used in database applications where it must be possible to access the information in the database randomly.

The current position can be obtained and modified using the following members:

ios::pos_type tellg():

the stream's current (absolute) position where the stream's next read-operation will take place is returned.
istream &seekg(ios::off_type step, ios::seekdir org):

modifies a stream's actual position. The function expects an off_type step representing the number of bytes the current stream position is moved with respect to org. The step value may be negative, zero or positive.

The origin of the step, org is a value in the ios::seekdir enumeration. Its values are:
- ios::beg:

  the stepsize is computed relative to the beginning of the stream. This value is used by default.
- ios::cur:

  the stepsize is computed relative to the current position of the stream (as returned by tellp).
- ios::end:

  the stepsize is interpreted relative to the current end position of the stream.
It is OK to seek beyond the last file position. Seeking before ios::beg raises the ios::failbit flag.

6.5.2: Input from files: the class ifstream

The std::ifstream class is derived from the istream class: it has the same capabilities as the istream class, but can be used to access files for reading.

In order to use the ifstream class in C++ sources, the <fstream> header file must be included. Including fstream does not automatically make available the standard streams cin, cout and cerr. Include iostream to declare these standard streams.

The following constructors are available for ifstream objects:

ifstream object:

this is the basic constructor. It defines an ifstream object which may be associated with an actual file later, using its open() member (see below).
ifstream object(char const *name, ios::openmode mode = ios::in):

this constructor can be used to define an ifstream object and associate it immediately with the file named name using input mode mode. Section 6.4.2.1 provides an overview of available input modes. Example:
```
ifstream in("/tmp/input");
```

Instead of directly associating an ifstream object with a file, the object can be constructed first, and opened later.

void open(char const *name, ios::openmode mode = ios::in):

associates an ifstream object with an actual file. If the ios::fail flag was set before calling open and opening succeeds the flag is cleared. Opening an already open stream fails. To reassociate a stream with another file it must first be closed:
```
ifstream in("/tmp/in");
in >> variable;
in.close();        // closes in
in.open("/tmp/in2");
in >> anotherVariable;
```
void close():

closes the ifstream object. The function sets the ios::fail flag of the closed object. Closing the file flushes any buffered information to the associated file. A file is automatically closed when the associated ifstream object ceases to exist.
bool is_open() const:

assume a stream was properly constructed, but it has not yet been attached to a file. E.g., the statement ifstream ostr was executed. When we now check its status through good(), a non-zero (i.e., OK) value is returned. The good status here indicates that the stream object has been constructed properly. It doesn't mean the file is also open. To test whether a stream is actually open, is_open should be called. If it returns true, the stream is open. Also see the example in section 6.4.2. The following example illustrates reading from a binary file (see also section 6.5.1.1):
```
#include <fstream>
using namespace std;

int main(int argc, char **argv)
{
    ifstream in(argv[1]);
    double   value;

    // reads double in raw, binary form from file.
    in.read(reinterpret_cast<char *>(&value), sizeof(double));
}
```

6.5.3: Input from memory: the class istringstream

To read information from memory using stream facilities, std::istringstream objects should be used. As the class istringstream is derived from the class istream all istream's facilities are available to istringstream objects as well. To use and define istringstream objects the header file <sstream> must be included. In addition the class istringstream offers the following constructors and members:

istringstream istr(string const &init, ios::openmode mode = ios::in):

the object is initialized with init's content
istringstream istr(ios::openmode mode = ios::in):

this constructor is usually used as the default constructor. Example:
```
std::istringstream in;
```
void str(std::string const &str): the current object is reinitialized with new initial content.

The following example illustrates the use of the istringstream class: several values are extracted from the object. Such istringstream objects are most often used for doing string to type conversions, like converting text to int values (cf. C's atoi function). Formatting flags can be used with istringstreams as well, as they are part of the istream class. In the example note especially the use of the member seekg:

#include <iostream>
#include <sstream>
using namespace std;

int main()
{
    istringstream istr("123 345");  // store some text.
    int x;

    istr.seekg(2);              // skip "12"
    istr >> x;                  // extract int
    cout << x << '\n';          // write it out
    istr.seekg(0);              // retry from the beginning
    istr >> x;                  // extract int
    cout << x << '\n';          // write it out
    istr.str("666");            // store another text
    istr >> x;                  // extract it
    cout << x << '\n';          // write it out
}
/*
    output of this program:
3
123
666
*/

6.5.4: Copying streams

Usually, files are copied either by reading a source file character by character or line by line. The basic mold to process streams is as follows:

Continuous loop:
- read from the stream
- if reading did not succeed (i.e., fail returns true), break from the loop
- process the information that was read

Note that reading must precede testing, as it is only possible to know after actually attempting to read from a file whether the reading succeeded or not. Of course, variations are possible: getline(istream &, string &) (see section 6.5.1.1) returns an istream &, so here reading and testing may be contracted using one expression. Nevertheless, the above mold represents the general case. So, the following program may be used to copy cin to cout:

#include <iostream>
using namespace::std;

int main()
{
    while (true)
    {
        char c;

        cin.get(c);
        if (cin.fail())
            break;
        cout << c;
    }
}

Contraction is possible here by combining get with the if-statement, resulting in:

if (!cin.get(c))
    break;

Even so, this would still follow the basic rule: read first, test later.

Simply copying a file isn't required very often. More often a situation is encountered where a file is processed up to a certain point, followed by plain copying the file's remaining information. The next program illustrates this. Using ignore to skip the first line (for the sake of the example it is assumed that the first line is at most 80 characters long), the second statement uses yet another overloaded version of the <<-operator, in which a streambuf pointer is inserted into a stream. As the member rdbuf returns a stream's streambuf *, we have a simple means of inserting a stream's content into an ostream:

#include <iostream>
using namespace std;

int main()
{
    cin.ignore(80, '\n');   // skip the first line and...
    cout << cin.rdbuf();    // copy the rest through the streambuf *
}

This way of copying streams only assumes the existence of a streambuf object. Consequently it can be used with all specializations of the streambuf class.

6.5.5: Coupling streams

Ostream objects can be coupled to ios objects using the tie member function. Tying results in flushing the ostream's buffer whenever an input or output operation is performed on the ios object to which the ostream object is tied. By default cout is tied to cin (using cin.tie(cout)). This tie means that whenever an operation on cin is requested, cout is flushed first. To break the tie, ios::tie(0) can be called. In the example: cin.tie(0).

Another useful coupling of streams is shown by the tie between cerr and cout. Because of the tie standard output and error messages written to the screen are shown in sync with the time at which they were generated:

#include <iostream>
using namespace std;

int main()
{
    cerr.tie(0);        // untie
    cout << "first (buffered) line to cout ";
    cerr << "first (unbuffered) line to cerr\n";
    cout << "\n";

    cerr.tie(&cout);    // tie cout to cerr
    cout << "second (buffered) line to cout ";
    cerr << "second (unbuffered) line to cerr\n";
    cout << "\n";
}
/*
    Generated output:

    first (unbuffered) line to cerr
    first (buffered) line to cout
    second (buffered) line to cout second (unbuffered) line to cerr
*/

An alternative way to couple streams is to make streams use a common streambuf object. This can be implemented using the ios::rdbuf(streambuf *) member function. This way two streams can use, e.g. their own formatting, one stream can be used for input, the other for output, and redirection using the stream library rather than operating system calls can be implemented. See the next sections for examples.

6.6: Advanced topics

6.6.1: Moving streams

Stream classes (e.g.,, all stream classes covered in this chapter) are movable and can be swapped. This implies that factory functions can be designed for stream classes. Here is an example:

ofstream out(string const &name)
{
    ofstream ret(name);             // construct ofstream
    return ret;                     // return value optimization, but
}                                   // OK as moving is supported

int main()
{
    ofstream mine(out("out"));      // return value optimizations, but
                                    // OK as moving is supported

    ofstream base("base");
    ofstream other;

    base.swap(other);               // swapping streams is OK

    other = std::move(base);        // moving streams is OK

    // other = base;                // this would fail: copy assignment
                                    // is not available for streams
}

6.6.2: Redirecting streams

Using ios::rdbuf streams can be forced to share their streambuf objects. Thus information written to one stream is actually written to another stream; a phenomenon normally called redirection. Redirection is commonly implemented at the operating system level, and sometimes that is still necessary (see section 25.2.3).

A common situation where redirection is useful is when error messages should be written to file rather than to the standard error stream, usually indicated by its file descriptor number 2. In the Unix operating system using the bash shell, this can be realized as follows:

program 2>/tmp/error.log

Following this command any error messages written by program are written to /tmp/error.log, instead of appearing on the screen.

Here is an example showing how this can be implemented using streambuf objects. Assume program expects an argument defining the name of the file to write the error messages to. It could be called as follows:

program /tmp/error.log

The program looks like this, an explanation is provided below the program's source text:

#include <iostream>
#include <fstream>
using namespace std;

int main(int argc, char **argv)
{
    ofstream errlog;                                // 1
    streambuf *cerr_buffer = 0;                     // 2

    if (argc == 2)
    {
        errlog.open(argv[1]);                       // 3
        cerr_buffer = cerr.rdbuf(errlog.rdbuf());   // 4
    }
    else
    {
        cerr << "Missing log filename\n";
        return 1;
    }

    cerr << "Several messages to stderr, msg 1\n";
    cerr << "Several messages to stderr, msg 2\n";

    cout << "Now inspect the contents of " <<
            argv[1] << "... [Enter] ";
    cin.get();                                      // 5

    cerr << "Several messages to stderr, msg 3\n";

    cerr.rdbuf(cerr_buffer);                        // 6
    cerr << "Done\n";                               // 7
}
/*
    Generated output on file argv[1]

    at cin.get():

Several messages to stderr, msg 1
Several messages to stderr, msg 2

    at the end of the program:

Several messages to stderr, msg 1
Several messages to stderr, msg 2
Several messages to stderr, msg 3
*/

At lines 1-2 local variables are defined: errlog is the ofstream to write the error messages to, and cerr_buffer is a pointer to a streambuf, to point to the original cerr buffer.
At line 3 the alternate error stream is opened.
At line 4 redirection takes place: cerr now writes to the streambuf defined by errlog. It is important that the original buffer used by cerr is saved, as explained below.
At line 5 we pause. At this point, two lines were written to the alternate error file. We get a chance to take a look at its content: there were indeed two lines written to the file.
At line 6 the redirection is terminated. This is very important, as the errlog object is destroyed at the end of main. If cerr's buffer would not have been restored, then at that point cerr would refer to a non-existing streambuf object, which might produce unexpected results. It is the responsibility of the programmer to make sure that an original streambuf is saved before redirection, and is restored when the redirection ends.
Finally, at line 7, Done is again written to the screen, as the redirection has been terminated.

6.6.3: Reading AND Writing streams

Streams can be read and written using std::fstream objects. As with ifstream and ofstream objects, its constructor expects the name of the file to be opened:

fstream inout("iofile", ios::in | ios::out);

Note the use of the constants ios::in and ios::out, indicating that the file must be opened for both reading and writing. Multiple mode indicators may be used, concatenated by the bitor operator. Alternatively, instead of ios::out, ios::app could have been used and mere writing would become appending (at the end of the file).

Reading and writing to the same file is always a bit awkward: what to do when the file may not yet exist, but if it already exists it should not be rewritten? Having fought with this problem for some time I now use the following approach:

#include <fstream>
#include <iostream>
#include <string>

using namespace std;

int main()
{
    fstream rw("fname", ios::out | ios::in);

    if (!rw)            // file didn't exist yet
    {
        rw.clear();     // try again, creating it using ios::trunc
        rw.open("fname", ios::out | ios::trunc | ios::in);
    }

    if (!rw)            // can't even create it: bail out
    {
        cerr << "Opening `fname' failed miserably" << '\n';
        return 1;
    }

    cerr << "We're at: " << rw.tellp() << '\n';

                        // write something
    rw << "Hello world" << '\n';

    rw.seekg(0);        // go back and read what's written

    string s;
    getline(rw, s);

    cout << "Read: " << s << '\n';
}

Under this approach if the first construction attempt fails fname doesn't exist yet. But then open can be attempted using the ios::trunc flag. If the file already existed, the construction would have succeeded. By specifying ios::ate when defining rw, the initial read/write action would by default have taken place at EOF.

Under DOS-like operating systems that use the multiple character sequence \r\n to separate lines in text files the flag ios::binary is required to process binary files ensuring that \r\n combinations are processed as two characters. In general, ios::binary should be specified when binary (non-text) files are to be processed. By default files are opened as text files. Unix operating systems do not distinguish text files from binary files.

With fstream objects, combinations of file flags are used to make sure that a stream is or is not (re)created empty when opened. See section 6.4.2.1 for details.

Once a file has been opened in read and write mode, the << operator can be used to insert information into the file, while the >> operator may be used to extract information from the file. These operations may be performed in any order, but a seekg or seekp operation is required when switching between insertions and extractions. The seek operation is used to activate the stream's data used for reading or those used for writing (and vice versa). The istream and ostream parts of fstream objects share the stream's data buffer and by performing the seek operation the stream either activates its istream or its ostream part. If the seek is omitted, reading after writing and writing after reading simply fails. The example shows a whitespace-delimited word being read from a file, writing another string to the file, just beyond the point where the just read word terminated. Finally yet another string is read which is found just beyond the location where the just written strings ended:

fstream f("filename", ios::in | ios::out);
string  str;

f >> str;       // read the first word

                // write a well-known text
f.seekp(0, ios::cur);
f << "hello world";

f.seekg(0, ios::cur);
f >> str;       // and read again

Since a seek or clear operation is required when alternating between read and write (extraction and insertion) operations on the same file it is not possible to execute a series of << and >> operations in one expression statement.

Of course, random insertions and extractions are hardly ever used. Generally, insertions and extractions occur at well-known locations in a file. In those cases, the position where insertions or extractions are required can be controlled and monitored by the seekg, seekp, tellg and tellp members (see sections 6.4.1.2 and 6.5.1.2).

Error conditions (see section 6.3.1) occurring due to, e.g., reading beyond end of file, reaching end of file, or positioning before begin of file, can be cleared by the clear member function. Following clear processing may continue. E.g.,

fstream f("filename", ios::in | ios::out);
string  str;

f.seekg(-10);   // this fails, but...
f.clear();      // processing f continues

f >> str;       // read the first word

A situation where files are both read and written is seen in database applications, using files consisting of records having fixed sizes, and where locations and sizes of pieces of information are known. For example, the following program adds text lines to a (possibly existing) file. It can also be used to retrieve a particular line, given its order-number in the file. A binary file index allows for the quick retrieval of the location of lines.

#include <iostream>
#include <fstream>
#include <string>
#include <climits>
using namespace std;

void err(char const *msg)
{
    cout << msg << '\n';
}

void err(char const *msg, long value)
{
    cout << msg << value << '\n';
}

void read(fstream &index, fstream &strings)
{
    int idx;

    if (!(cin >> idx))                          // read index
    {
        cin.clear();                            // allow reading again
        cin.ignore(INT_MAX, '\n');              // skip the line
        return err("line number expected");
    }

    index.seekg(idx * sizeof(long));            // go to index-offset

    long offset;

    if
    (
        !index.read                             // read the line-offset
        (
            reinterpret_cast<char *>(&offset),
            sizeof(long)
        )
    )
        return err("no offset for line", idx);

    if (!strings.seekg(offset))                 // go to the line's offset
        return err("can't get string offset ", offset);

    string line;

    if (!getline(strings, line))                // read the line
        return err("no line at ", offset);

    cout << "Got line: " << line << '\n';       // show the line
}

void write(fstream &index, fstream &strings)
{
    string line;

    if (!getline(cin, line))                  // read the line
        return err("line missing");

    strings.seekp(0, ios::end);               // to strings
    index.seekp(0, ios::end);                 // to index

    long offset = strings.tellp();

    if
    (
        !index.write                          // write the offset to index
        (
            reinterpret_cast<char *>(&offset),
            sizeof(long)
        )
    )
        return err("Writing failed to index: ", offset);

    if (!(strings << line << '\n'))           // write the line itself
        return err("Writing to `strings' failed");
                                                // confirm writing the line
    cout << "Write at offset " << offset << " line: " << line << '\n';
}

int main()
{
    fstream index("index", ios::trunc | ios::in | ios::out);
    fstream strings("strings", ios::trunc | ios::in | ios::out);

    cout << "enter `r <number>' to read line <number> or "
                                "w <line>' to write a line\n"
            "or enter `q' to quit.\n";

    while (true)
    {
        cout << "r <nr>, w <line>, q ? ";       // show prompt

        index.clear();
        strings.clear();

        string cmd;
        cin >> cmd;                             // read cmd

        if (cmd == "q")                         // process the cmd.
            return 0;

        if (cmd == "r")
            read(index, strings);
        else if (cmd == "w")
            write(index, strings);
        else if (cin.eof())
        {
            cout << "\n"
                    "Unexpected end-of-file\n";
            return 1;
        }
        else
            cout << "Unknown command: " << cmd << '\n';
    }
}

Another example showing reading and writing of files is provided by the next program. It also illustrates the processing of NTBSs:

#include <iostream>
#include <fstream>
using namespace std;

int main()
{                                       // r/w the file
    fstream f("hello", ios::in | ios::out | ios::trunc);

    f.write("hello", 6);                // write 2 NTB strings
    f.write("hello", 6);

    f.seekg(0, ios::beg);               // reset to begin of file

    char buffer[100];                   // or: char *buffer = new char[100]
    char c;
                                        // read the first `hello'
    cout << f.get(buffer, sizeof(buffer), 0).tellg() << '\n';
    f >> c;                             // read the NTB delim

                                        // and read the second `hello'
    cout << f.get(buffer + 6, sizeof(buffer) - 6, 0).tellg() << '\n';

    buffer[5] = ' ';                    // change asciiz to ' '
    cout << buffer << '\n';             // show 2 times `hello'
}
/*
    Generated output:
5
11
hello hello
*/

A completely different way to read and write streams may be implemented using streambuf members. All considerations mentioned so far remain valid (e.g., before a read operation following a write operation seekg must be used). When streambuf objects are used, either an istream is associated with the streambuf object of another ostream object, or an ostream object is associated with the streambuf object of another istream object. Here is the previous program again, now using associated streams:

#include <iostream>
#include <fstream>
#include <string>
using namespace std;

void err(char const *msg);      // see earlier example
void err(char const *msg, long value);

void read(istream &index, istream &strings)
{
    index.clear();
    strings.clear();

    // insert the body of the read() function of the earlier example
}


void write(ostream &index, ostream &strings)
{
    index.clear();
    strings.clear();

    // insert the body of the write() function of the earlier example
}

int main()
{
    ifstream index_in("index", ios::trunc | ios::in | ios::out);
    ifstream strings_in("strings", ios::trunc | ios::in | ios::out);
    ostream  index_out(index_in.rdbuf());
    ostream  strings_out(strings_in.rdbuf());

    cout << "enter `r <number>' to read line <number> or "
                                "w <line>' to write a line\n"
            "or enter `q' to quit.\n";

    while (true)
    {
        cout << "r <nr>, w <line>, q ? ";       // show prompt

        string cmd;

        cin >> cmd;                             // read cmd

        if (cmd == "q")                         // process the cmd.
            return 0;

        if (cmd == "r")
            read(index_in, strings_in);
        else if (cmd == "w")
            write(index_out, strings_out);
        else
            cout << "Unknown command: " << cmd << '\n';
    }
}

In this example

the streams associated with the streambuf objects of existing streams are not ifstream or ofstream objects but basic istream and ostream objects.
The streambuf object is not defined by an ifstream or ofstream object. Instead it is defined outside of the streams, using a filebuf (cf. section 14.8.2) and constructions like:
```
filebuf fb("index", ios::in | ios::out | ios::trunc);
istream index_in(&fb);
ostream index_out(&fb);
```
An ifstream object can be constructed using stream modes normally used with ofstream objects. Conversely, an ofstream objects can be constructed using stream modes normally used with ifstream objects.
If istream and ostreams share a streambuf, then their read and write pointers (should) point to the shared buffer: they are tightly coupled.
The advantage of using an external (separate) streambuf over a predefined fstream object is (of course) that it opens the possibility of using stream objects with specialized streambuf objects. These streambuf objects may specifically be constructed to control and interface particular devices. Elaborating this (see also section 14.8) is left as an exercise to the reader.

Like fstream objects string-stream objects can also be used for reading and writing. After including the <sstream> header file a std::stringstream can be defined which supports both reading and writing. After inserting information into a stringstream object seekg(0) can be called to read its info from the beginning of its content. When a stringstream must repeatedly be used for reading and writing call its clear and str members before starting a new writing cycle. Alternatively, a stringstream str can be reinitialized using str = stringstream{}. Here is an example:

#include <iostream>
#include <sstream>
using namespace std;

int main(int argc, char **argv)
{
    stringstream io;
    for (size_t redo = 0; redo != 2; ++redo)
    {
        io.clear();                 // clears the not-good flags
        io.str("");
        io << argv[0] << '\n';

        io.seekg(0);
        string line;
        while (getline(io, line))   // results in io.eof()
            cout << line << '\n';
    }
}

89 KiB Raw Blame History
